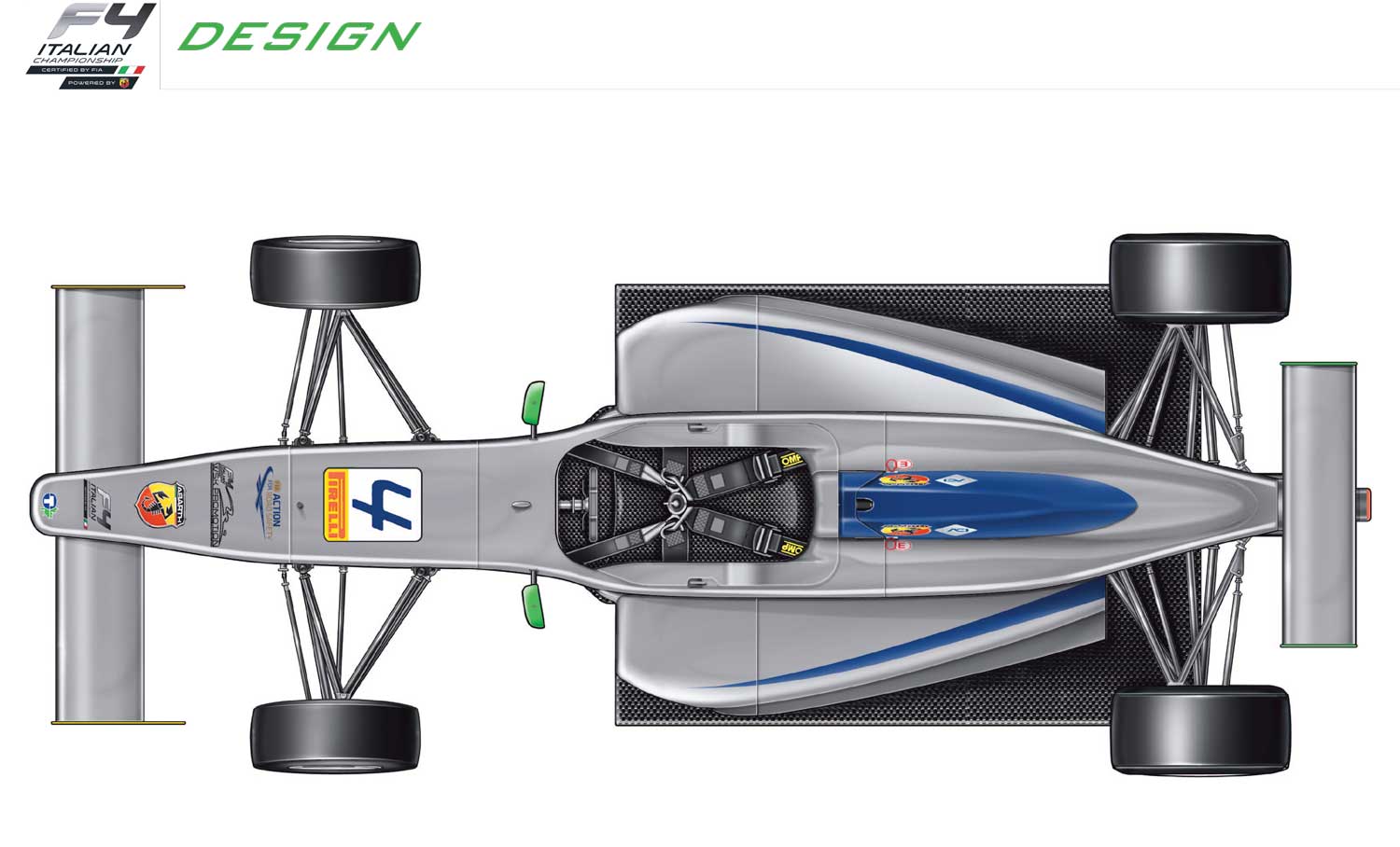

LA VETTURA

La monoposto è progettata e prodotta da Tatuus ed ha debuttato nel 2012. Si tratta di una monoposto caratterizzata da un elevato carico aerodinamico che richiede una buona preparazione fisica. Le sue molteplici regolazioni permettono ai piloti di capire come varia la guida in funzione delle modifiche sul set-up.

SPECIFICHE TECNICHE



Chassis: Tatuus monocoque carbon composite FIA F.4 homologated

SaeftyFeatures: Carbon composite front and rear crashbox FIA F.4 homologated Steering column FIA F.4 homologated Roll-hoop FIA F.4 homologated Wheel tethers Cortex FIA homologated OMP Six-point safety harnesses, Hans system OMP Extinguisher electrically operated Removable head protection Removable seat FIA standard

Bodywork: Fiberglass

Wings: Front wing with mainplane adjustable Rear wing with two aero profiles, mainplane adjustable

Engine: Abarth 414 F4 Turbocharged 1.4 cc. 160 hp

Electronics ECU: Magneti Marelli

Instrumentation: LCD dash integrated in sterring wheel Next Solution

Data acquisition: AIM Evo 4 plus camera car

Transmission: Sequential Sadev six-speed gearbox Paddle shift Magneti Marelli EGA

Front Suspension: Double wishbone with pushrods Twin shock layout Camber and toe adjustable

Rear Suspension: Double wishbone with pushrods Twin shock layout Camber, toe, roll centre, anti-squat adjustable

Dampers: Oram Bump and rebound adjustable

Brakes: Brembo 2 pistons calipers, cast iron ventilated discs Ferodo brake pads

Fuel: Premier FIA FT3 40 lt. volume

Wheels: O.Z. Aluminium front 8 x 13” rear 10 x 13”

Tyres: Pirelli front 200 x 540 x 13” rear 250 x 575 x 13”

Steering rack: Machined aluminium

Upright: Front and rear machined aluminium

Wheel base: 2.750 mm approx

Front track: 1.600 mm approx

Rear track: 1.500 mm approx

Weight: 570 kg with driver

Aerodynamic: 50 mm step
